Foldable House

Folding Container House

The folding container house is an efficient modular solution for residential and office use spaces. All components are prefabricated in the factory and delivered to the site in a compressed folded state. It can be quickly put into service after simple assembly. Adopting a standard stackable design, the product supports single layer placement or multi layer stacking, featuring high flexibility in spatial layout and functional configuration to meet diverse application requirements.

1. Cost Effective & Sustainable Solution

Compared with traditional brick concrete buildings, folding container houses require no large scale civil construction. Material consumption is controllable with low waste, which effectively reduces overall construction costs. The main galvanized steel structure can be repeatedly disassembled and reused for multiple cycles, producing no demolition debris or construction dust. It represents an economical, eco friendly and sustainable new type building option.

2. Product Specifications

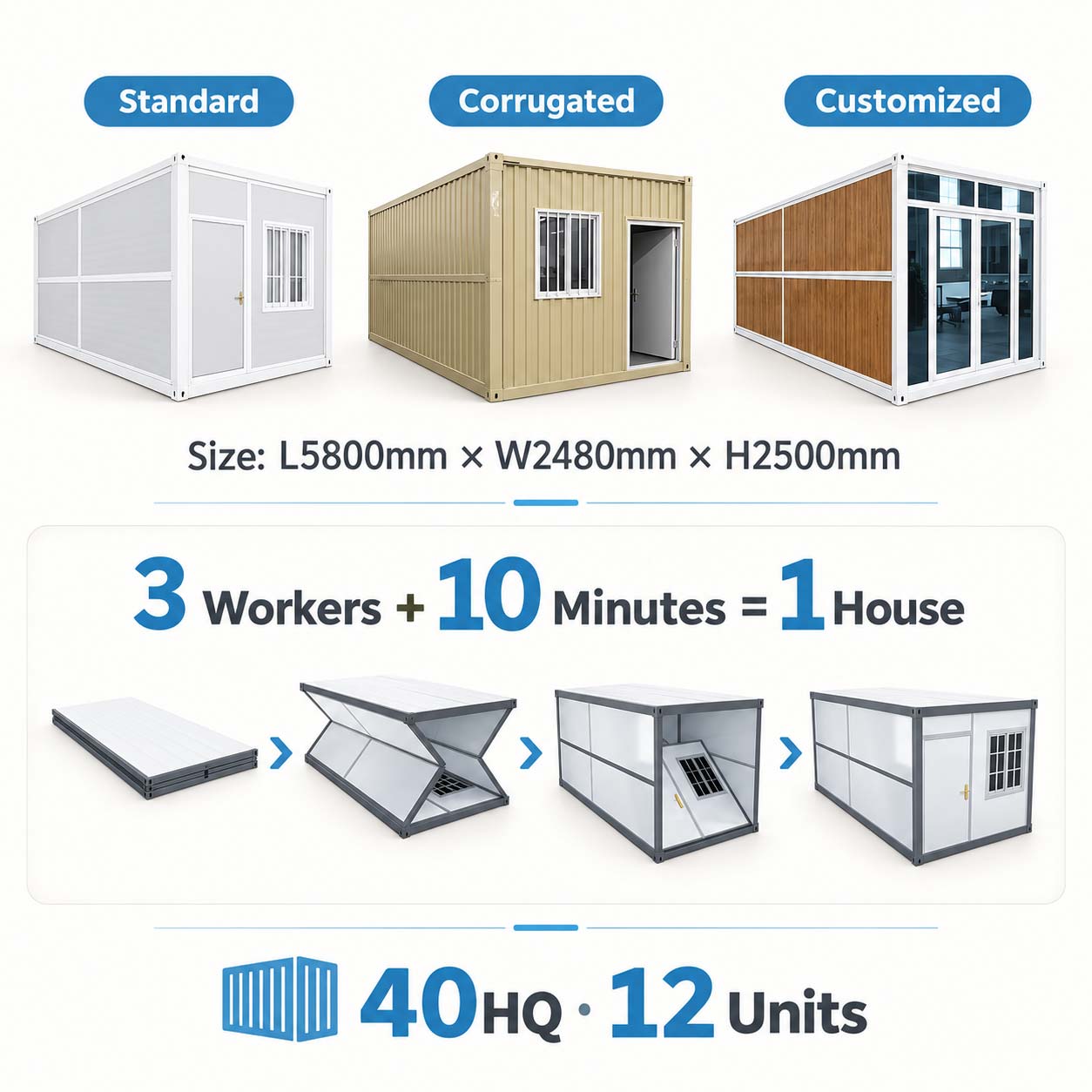

• Folded transport dimension: 5800mm (L) × 2480mm (W) × 350mm (H)
• Unfolded in use dimension: 5800mm (L) × 2480mm (W) × 2500mm (H)
• Floor area: approx. 14 ㎡
• Shipping advantage: 12 14 finished units can be loaded into one 40′ HQ container

3. Fast Assembly, Time Saving & Labor Efficient

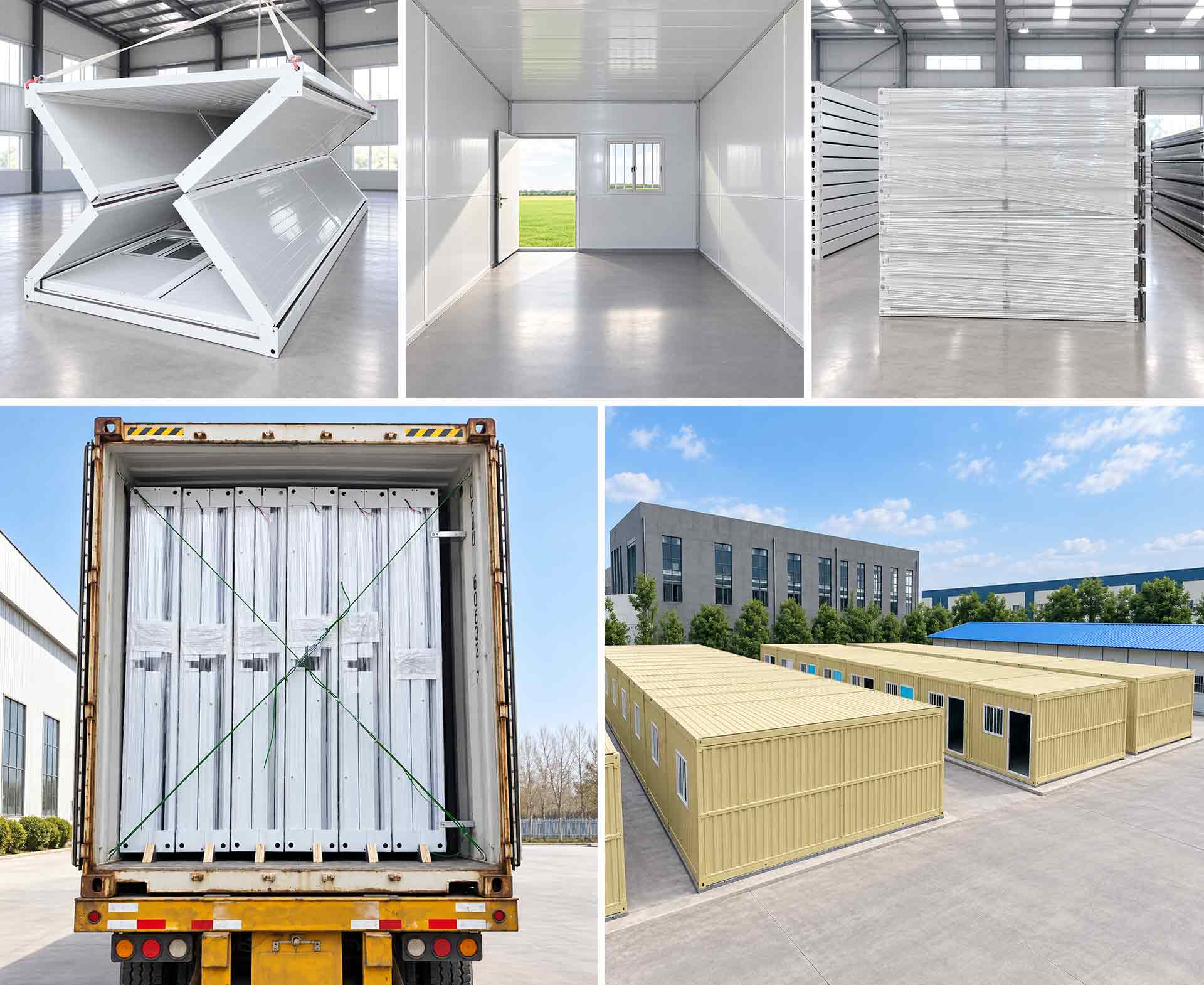

Delivered on site in compressed folded condition, the house does not demand complex foundation treatment. With only a small workforce and basic tools, full assembly and finishing work can be completed within several days. It greatly shortens the construction cycle and cuts labor input, making it ideal for projects with tight schedules and limited site conditions.

4. Robust & Weather Resistant

Built with high strength galvanized steel frame, the house delivers good anti corrosion and anti rust performance, stable structure and long service life. Walls are constructed with double sided color steel sandwich insulation panels, offering excellent heat preservation, heat insulation and sound insulation performance. It maintains a comfortable indoor environment and adapts to harsh conditions including severe cold, intense heat and heavy rainfall.

5. Typical Application Scenarios

• Residence: Configurable with bedroom, living room, kitchen and bathroom. Suitable for affordable housing, rural buildings and quick move in projects.
• Site Dormitory: Accommodation for workers and management staff. Reusable and relocatable upon project completion.
• Remote Field Camps: On site housing for personnel working in mines, oil fields, forest zones and power inspection locations.
• Emergency Shelter: Rapid mass deployment to provide temporary housing after natural disasters or public health emergencies.
• Project Site Office: On site workspace for daily work, meetings and reception; expandable via modular combination.
• Field Duty Room: Long term posts for forest fire prevention, water conservancy patrol and meteorological monitoring.
• Exhibition & Event Office: Organizer offices, media centers and VIP lounges; quick dismantling after events.
• Storage Room: Rain proof and moisture proof storage for construction sites, factories and farms; multiple units can be connected together.
• Equipment Room: Dust proof and sound insulated housing for generators, water pumps and monitoring devices.
• Security Booth: Guard and inspection posts at entrances of industrial parks, factories and parking lots.
